- Specification
Materials:
- Extractor : PC, UL 94V-2, options color.
- Housing : Zinc die-Casting with nickel plated.
- Plug Housing : PC, UL 94V-2, black color.
- Contact material : Phosphor bronze with 100 micro-inch nickel plated.
- Contact finish : Min. 50 micro-inch gold plated on surface contact area.
- Cover : Zinc die-casting with nickel plated.
- Wire management bar : PC + Glass fiber, white color, UL94-V2.
- IDC Housing : PC, white color, UL94-V2
- IDC Terminal : Titanium copper with tin plated.
- Grounding contact : Zinc die-casting with nickel plated.
- Boot Housing : Zinc die-casting with nickel plated.
- Boot SR : PC, UL 94V-2, black color.
- Boot CAP : PC, UL 94V-2, black color.
- PCB, UL 94-V0.
- Copper foil tape.
Specifications:

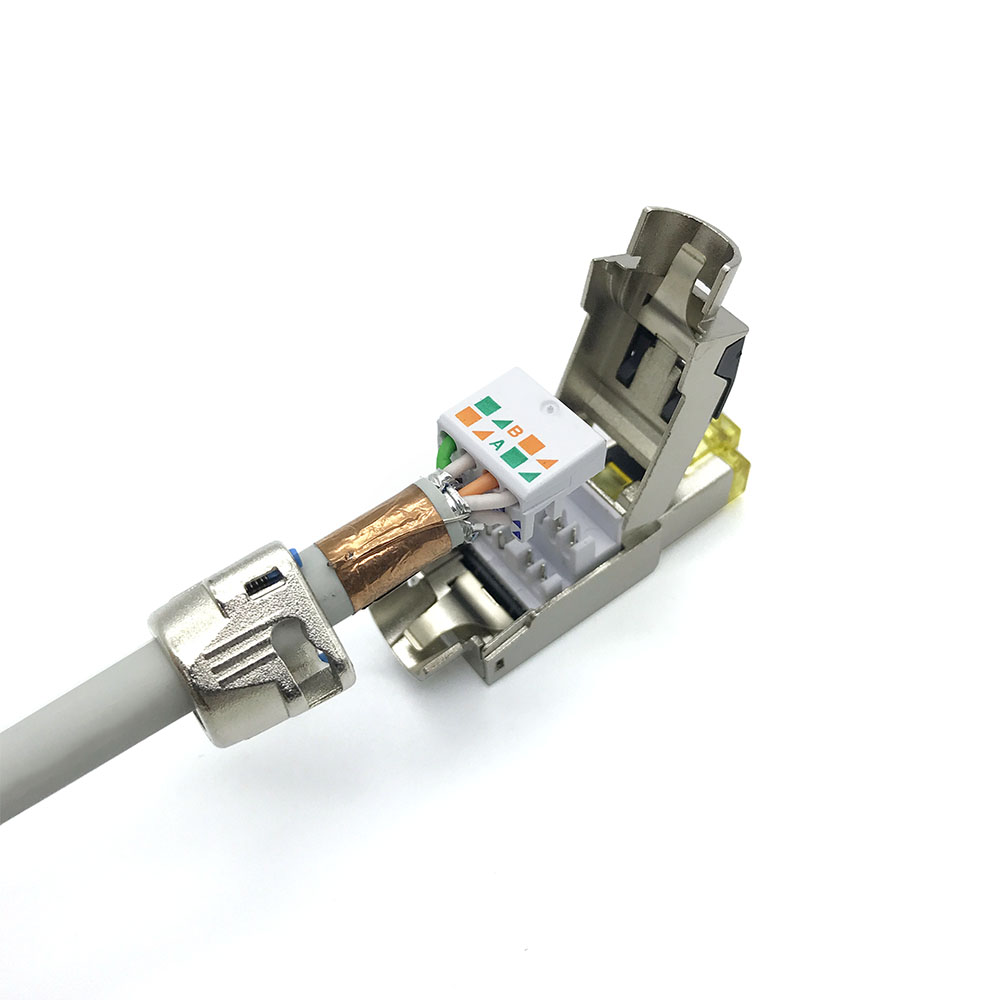

- Full shielded with zinc alloy housing
- T568A & T568B wiring
- Complied with the Cat. 6A patch cord component level
- Cable wire gauge : 23AWG to 26AWG
- Cable outer diameter : 6.0 to 7.5mm
- Suitable for the PoE plus (IEEE 802.3at) applications
- Easy, quick and reliable installation
