- Specification
Material:
Insulator : Thermal plastic, rated UL94V-0
Contacts : Copper Alloy
Contacts type : solder Type
Metal parts : copper with Ni plating
Contacts plating:
Underplate : 50u”~100u” Nickel
Contact area : 1u”~15u” Gold
Solder tails area : 1u” Gold
General Data:

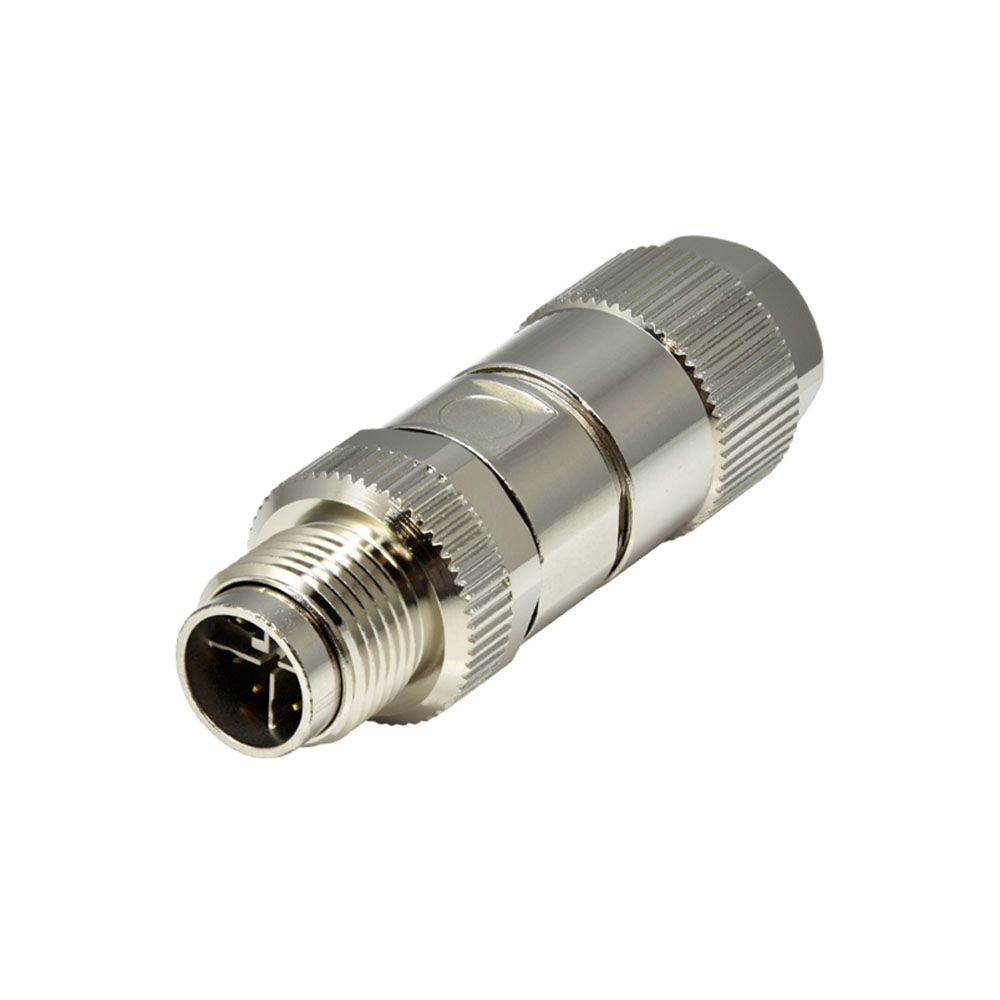

Standard/Regulation : M12 connector IEC 61076-2-101
Coding : A-standard
Number of position : 4,5
AWG Signal line : 22
Current rating : 4 Amps max.
Insulation resistance : 100 Mohms min @ 500 VDC
Degree of protection : IP 67
Temperature range : -20°C TO +85°C
Mating cycles : 100 insertions
