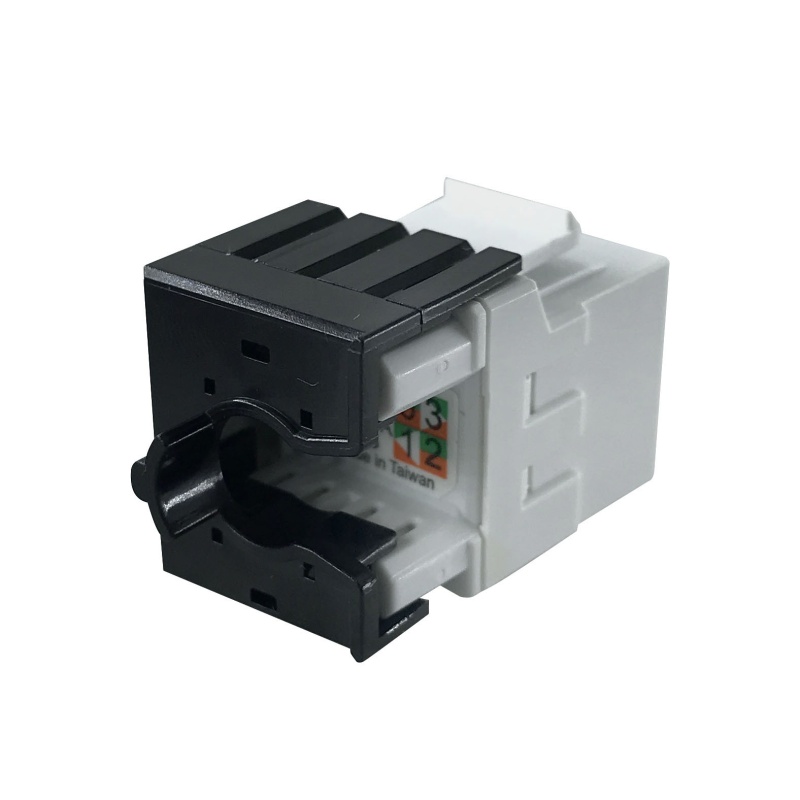

Cat. 6A UTP 180 Degree Punch Down Keystone Jack with Shutter

Specification

• Meets TIA/EIA-568.2-D Cat6A (500MHz) Channel and 15M short Permanent Link requirements
• IDC Type: Dual

Electrical

• Insulation Resistance : 500 MΩhm minimum @ 100 Vdc
• Dielectric Withstanding Voltage : 1000 Vac rms @ 60Hz for one minute
• Current Rating : 1.5 Amps
• Spring wire contact resistance : 20 mΩhm maximum
• IDC Contact resistance : 2.5 mΩhm maximum

Mechanical

• Total Contact force : >100 GRAMS per contact wire lead
• Retention : 50 N(11 Ibf) for 60s ± 5s
• Durability : 750 cycles minimum
• Conductor compatibility : 22~24AWG
• Temperature range storage : -40℃ ~ +70℃
• Temperature range operation : -10℃ ~ +60℃
• Relative humidity operation : Maximum noncondensing 93%

Materials

• Housing : High lmpact flame retardant plastic,UL 94 V- 0 Rated
• PCB : FR4, 1.6mm thickness
• Spring wire : Phosphor Bronze Alloy plated with 50 micro-inch of gold over 70 ~ 100 micro-inch of nickel
• IDC : Phosphor Bronze alloy plated with 100 micro-inch of tin
• Termination Cap: Stainless Steel + PC, UL 94V-0
