Cat.6A Unshielded 180 Degree Punch Down Keystone Jack

UC80-6ACA

Category 6A modular jack, RJ-45 keystone jack, 8position 8 conductor(8P8C) provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advance printed circuit board provides optimum signal quality with maximum headroom. Designed to easily snap in and out of wall outlets, patch panels and surface boxes.

  • Dust door & shuttered door available
  • ANSI/TIA-568.2-D
  • ETL verified and UL safety listed
  • RoHS compliant


  • Specification
  • Drawing
  • Order Info

Specification

  • Meets TIA/EIA-568.2-D Cat6A (500MHz) Channel and 15M short Permanent Link requirements
  • IDC Type: Dual



Electrical

  • Insulation Resistance : 500 MΩhm minimum @ 100 Vdc
  • Dielectric Withstanding Voltage : 1000 Vac rms @ 60Hz for one minute
  • Current Rating : 1.5 Amps
  • Spring wire contact resistance : 20 mΩhm maximum
  • IDC Contact resistance : 2.5 mΩhm maximum



Mechanical

  • Total Contact force : >100 GRAMS per contact wire lead
  • Retention : 50 N(11 Ibf) for 60s ± 5s
  • Durability : 750 cycles minimum
  • Conductor compatibility : 22~24AWG
  • Temperature range storage : -40℃ ~ +70℃
  • Temperature range operation : -10℃ ~ +60℃
  • Relative humidity operation : Maximum noncondensing 93%



Materials

  • Housing : High lmpact flame retardant plastic,UL 94 V- 0 Rated
  • PCB : FR4, 1.6mm thickness
  • Spring wire : Phosphor Bronze Alloy plated with 50 micro-inch of gold over 70 ~ 100 micro-inch of nickel
  • IDC : Phosphor Bronze alloy plated with 100 micro-inch of tin
  • Termination Cap: Stainless Steel + PC, UL 94V-0

P/N

Description

Colour

UC80-6ACA

Cat. 6A UTP 180 Degree  Punch Down Keystone Jack

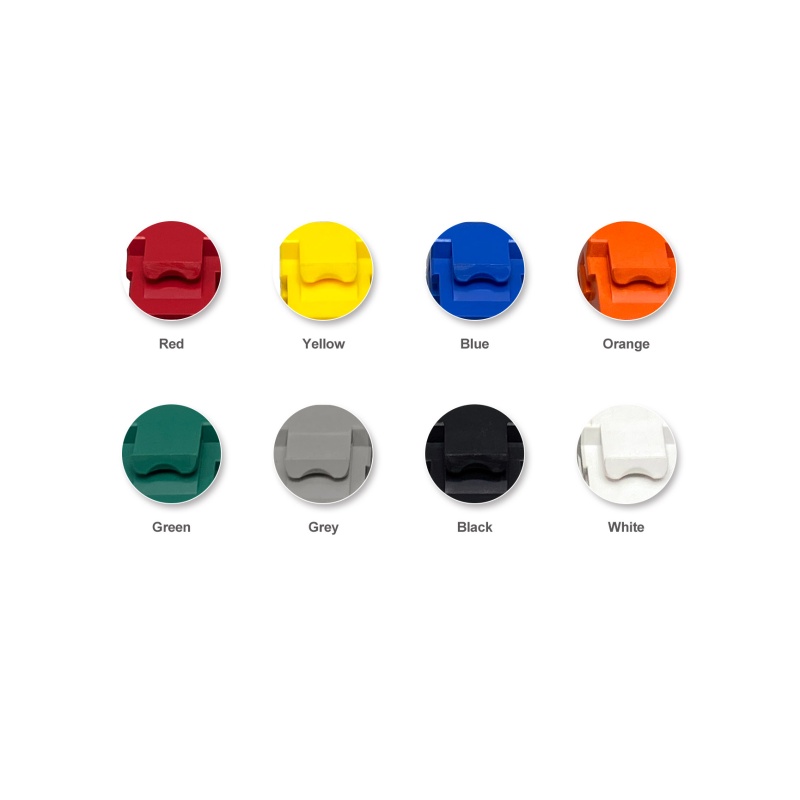

White, Black, Grey, Red, Orange, Yellow, Green, Blue

UC80-6ACB

Cat. 6A UTP 180 Degree  Punch Down Keystone Jack with Dust Cover

UC80-6ACC

Cat. 6A UTP 180 Degree  Punch Down Keystone Jack, Australian Style

UC80-6ACD

Cat. 6A UTP 180 Degree  Punch Down Keystone Jack with Shutter
