1U 24-Port Unshielded Snap-in Patch Panel, Front Plastic Plate w/ Label Space

UPL-5E24B

Snap-in Patch Panel provides for fast and reliable installation by accelerating module mounting and cable tie-down operation, A hinged folding rear cable management is for space saving consideration, it is easy to snap into the panel without the need for any tools.



  • Specification

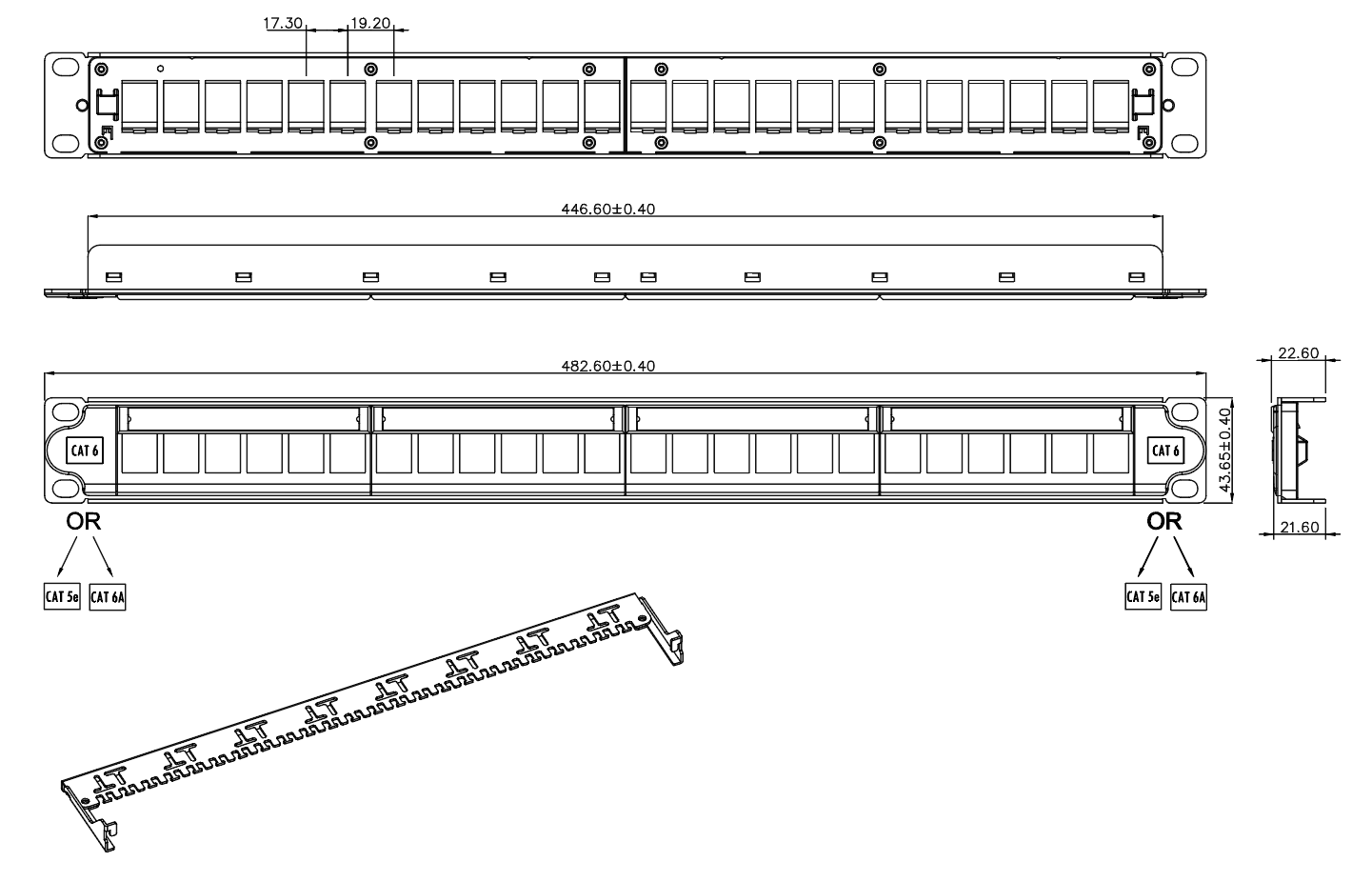

  • Drawing
  • Order Info

Materials

  • Cover: ABS 94V-0 Fire retardant plastic
  • Rear Panel : SPCC, t=1.5mm, Painting
  • Panel Back : ABS 94V-0 Fire retardant plastic
  • Support Bar : SPCC, t=1.5mm, Electrophoretic deposition
  • Frame : Poly stickers
  • Window : PS



Part Number

Description

Category Printing

UPL-5E24B

1U 24-Port Snap-in type, Plastic fascia Patch panel



Cat. 5e

UPL-24B

None
